2022 ROV and Mapping Shakedown

February 23 - March 3, 2022

Expedition Summary

February 23-March 3, 2022, NOAA Ocean Exploration led an expedition in the Gulf of Mexico and the western Straits of Florida to “shake down” the mission and related systems on NOAA Ship Okeanos Explorer.

The primary purpose of the shakedown was to ensure that the remotely operated vehicle (ROV), mapping, telepresence, positioning, and other important systems needed to conduct scientific activities were working properly and prepared for the season ahead. While system testing and troubleshooting took priority, we can’t have a shakedown without some degree of ocean exploration, which helps us better understand the deepwater areas of the region.

ROV testing and operations consisted of seven dives using the dual-bodied ROV system of Deep Discoverer and Seirios. Dives ranged in depth from 490 to 3,420 meters (1,608 to 11,220 feet). During these dives, ROV engineers tested Deep Discoverer’s existing electronic, hydraulic, lighting, and camera systems.

Shakedowns are also a good time to test new tools and technologies. This year, for example, we successfully piloted Deep Discoverer from shore in Rhode Island and tested a low-light camera with a tool to stimulate bioluminescence (picture Deep Discoverer holding a tennis racket) that allowed us to observe the production of light by corals and organisms in the water column.

Engineers on deck prepare remotely operated vehicle Deep Discoverer for a dive during the 2022 ROV and Mapping Shakedown with the new “bioluminescence agitator” that was built to stimulate light production by animals in the deep, dark ocean.
Engineers on deck prepare remotely operated vehicle Deep Discoverer for a dive during the 2022 ROV and Mapping Shakedown with the new “bioluminescence agitator” that was built to stimulate light production by animals in the deep, dark ocean. Image courtesy of Art Howard, GFOE, 2022. Download largest version (jpg, 9.2 MB).
During shakedown expeditions, we also test our sampling capabilities and processes. At the request of a scientist on shore, we collected this jellyfish (Solmissus sp.) during Dive 05 of the 2022 ROV and Mapping Shakedown with the hopes of learning more about it.
During shakedown expeditions, we also test our sampling capabilities and processes. At the request of a scientist on shore, we collected this jellyfish (Solmissus sp.) during Dive 05 of the 2022 ROV and Mapping Shakedown with the hopes of learning more about it. Image courtesy of NOAA Ocean Exploration, 2022 ROV and Mapping Shakedown. Download largest version (jpg, 1.1 MB).

Also, while testing our new BlueView sonar, which helps ROV pilots detect objects and features before light from the ROV reaches them, we targeted a site on the seafloor at a depth of 1,830 meters (6,004 feet) that was believed to be a shipwreck. The test was another success. With video from the dive and extensive research, scientists confirmed that the wreck is likely the historically significant 19th century whaler Industry.

Extracted from a 3D model of the Industry shipwreck site explored during Dive 02 of the 2022 ROV and Mapping Shakedown, this photomosaic shows the ship’s remains and its outline in the sediment.
Extracted from a 3D model of the Industry shipwreck site explored during Dive 02 of the 2022 ROV and Mapping Shakedown, this photomosaic shows the ship’s remains and its outline in the sediment. Image courtesy of the Bureau of Ocean Energy Management using NOAA Ocean Exploration, 2022 ROV and Mapping Shakedown remotely operated vehicle video footage. Download largest version (jpg, 12.7 MB).
The final dive (Dive 07) of the 2022 ROV and Mapping Shakedown was on a coral wonderland. The biodiversity was quite high and included corals, sponges, crinoids, brittle stars, squat lobsters, sea stars, anemones, shrimp, urchins, and more.
The final dive (Dive 07) of the 2022 ROV and Mapping Shakedown was on a coral wonderland. The biodiversity was quite high and included corals, sponges, crinoids, brittle stars, squat lobsters, sea stars, anemones, shrimp, urchins, and more. Image courtesy of NOAA Ocean Exploration, 2022 ROV and Mapping Shakedown. Download largest version (jpg, 1.2 MB).

Other exploration highlights included the collection of 12 samples (3 geological and 3 biological; 6 water for environmental DNA analysis), the observation of a rich biodiversity of corals and sponges in a coral garden-like environment, and the first sighting of a candelabra octocoral in the Gulf of Mexico.

Since ocean exploration depends on accurate mapping data, we adjusted the multibeam sonar system for maximum accuracy and tested and assessed its readiness and the readiness of associated systems and equipment. In addition to the shakedown objectives, we mapped 4,926 square kilometers (1,902 square miles) and 829 linear kilometers (515 miles) of seafloor in areas deeper than 200 meters (656 feet), focusing on areas with no or low-quality mapping data.

View the initial Expedition Overview.

Operations

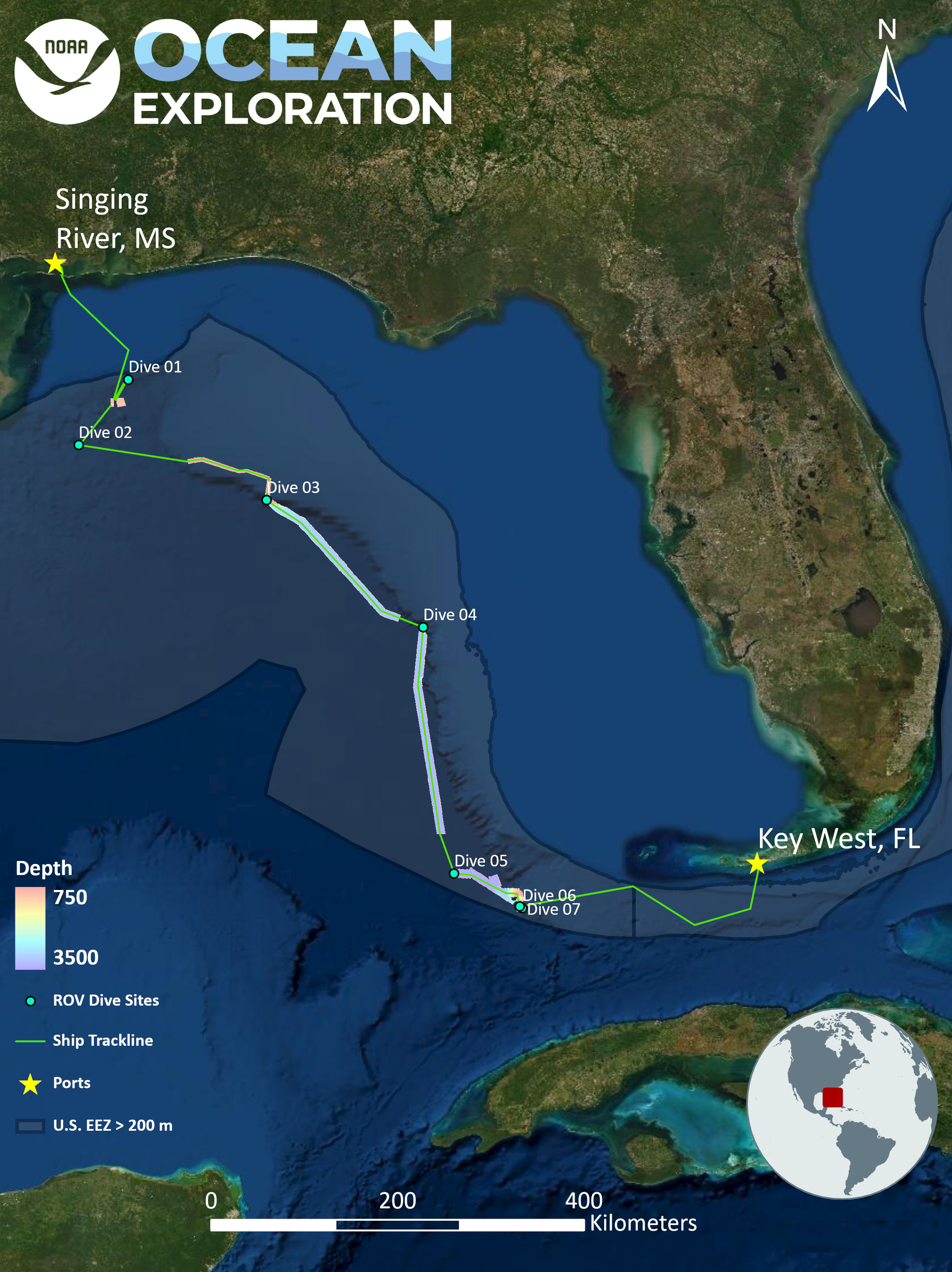

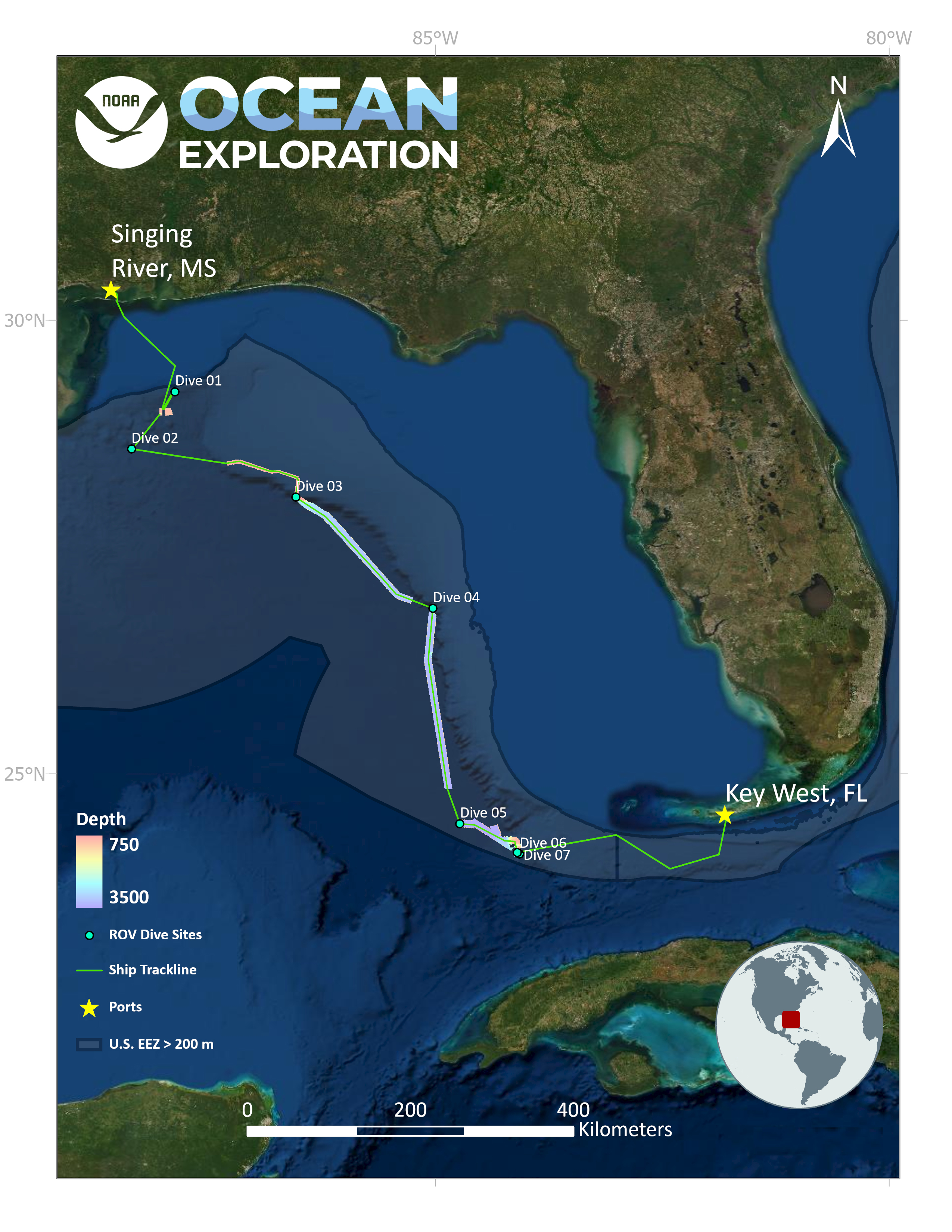

This map shows the mapping data collected (lines colored by depth) and remotely operated vehicle dive sites (green dots) for the 2022 ROV and Mapping Shakedown as completed.
This map shows the mapping data collected (lines colored by depth) and remotely operated vehicle dive sites (green dots) for the 2022 ROV and Mapping Shakedown as completed. Image courtesy of NOAA Ocean Exploration, 2022 ROV and Mapping Shakedown. Download largest version (jpg, 2.6 MB).

Education Themes

Education Theme pages provide the best of what the NOAA Ocean Exploration website has to offer to support your classroom during this expedition. On each theme page, you will find links to expedition features, lessons, multimedia, career information, and associated past expeditions.

Media Contacts

Emily Crum

Communication Specialist
NOAA Ocean Exploration
emily.crum@noaa.gov

David Hall

Public Affairs Officer
NOAA Office of Marine and Aviation Operations
david.l.hall@noaa.gov

NOAA Ocean Exploration’s 2022 ROV and Mapping Shakedown will contribute to the National Strategy for Exploring, Mapping, and Characterizing the United States Exclusive Economic Zone (PDF, 1.9 MB) and is part of NOAA’s Atlantic Seafloor Partnership for Integrated Research and Exploration (ASPIRE) campaign.

Data collected during this expedition will be available in NOAA’s public data archives within 60-90 days of the end of the expedition and accessible via the NOAA Ocean Exploration Digital Atlas.
