Windows to the Deep 2019: Exploration of the Deep-sea Habitats of the Southeastern United States

Leg 2 Mission Plan

by Kasey Cantwell, NOAA Office of Ocean Exploration and Research
Amy Wagner, Co-science Lead, California State University, Sacramento
Alexis Weinnig, Co-science Lead, Temple University

The remotely operated vehicle Deep Discoverer (D2) will be used to image unexplored areas of the Blake Plateau, Blake Ridge, Blake Escarpment, submarine canyons offshore of North Carolina, submerged cultural heritage sites, areas predicted to be suitable habitat for deep-sea corals and sponges, inter-canyon areas, and gas seeps.

The remotely operated vehicle Deep Discoverer will be used to image unexplored areas of the Blake Plateau, Blake Ridge, Blake Escarpment, submarine canyons offshore of North Carolina, submerged cultural heritage sites, areas predicted to be suitable habitat for deep-sea corals and sponges, inter-canyon areas, and gas seeps. Image courtesy of the NOAA Office of Ocean Exploration and Research. Download image (jpg, 7.1 MB).

From June 20 through July 12, NOAA and partners will conduct the second leg of the Windows to the Deep 2019 expedition, a telepresence-enabled ocean exploration expedition on NOAA Ship Okeanos Explorer to collect critical baseline information about unknown and poorly understood deepwater areas off the southeastern U.S. coast. During this expedition, our at-sea and shore-based science teams will work together to map the seafloor and observe many targeted sites for the first time.

The first leg of this expedition, which will take place from May 30 to June 14, involves the collection of seafloor and water column mapping data to further improve fundamental understanding in this region and to facilitate remotely operated vehicle (ROV) dive planning. ROV dives are planned from June 21 to July 11 during the expedition’s second leg, at depths ranging from 250 to 4,000 meters (820 to 13,124 feet).

Mapping and ROV operations during Leg 2 include, but are not limited to, unexplored areas of the Blake Plateau, Blake Ridge, Blake Escarpment, submarine canyons offshore of North Carolina, submerged cultural heritage sites, areas predicted to be suitable habitat for deep-sea corals and sponges, inter-canyon areas, and gas seeps. The ROV dives will enable scientists and managers to build a better understanding of the diversity and distribution of deepwater habitats in this region, allowing for informed resource management decisions.

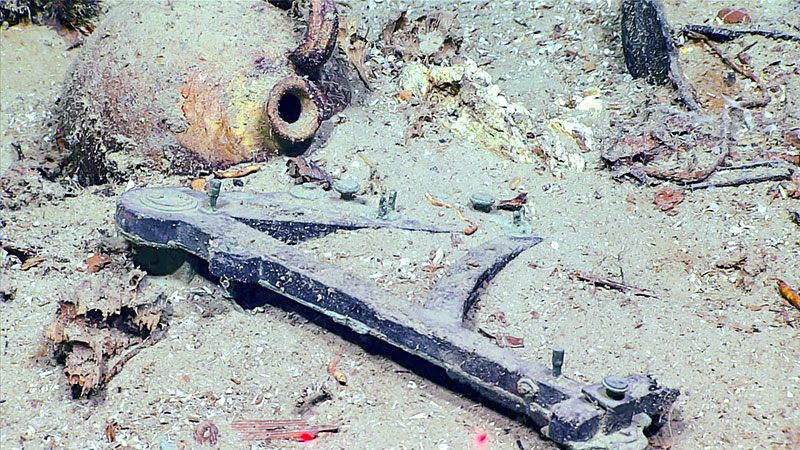

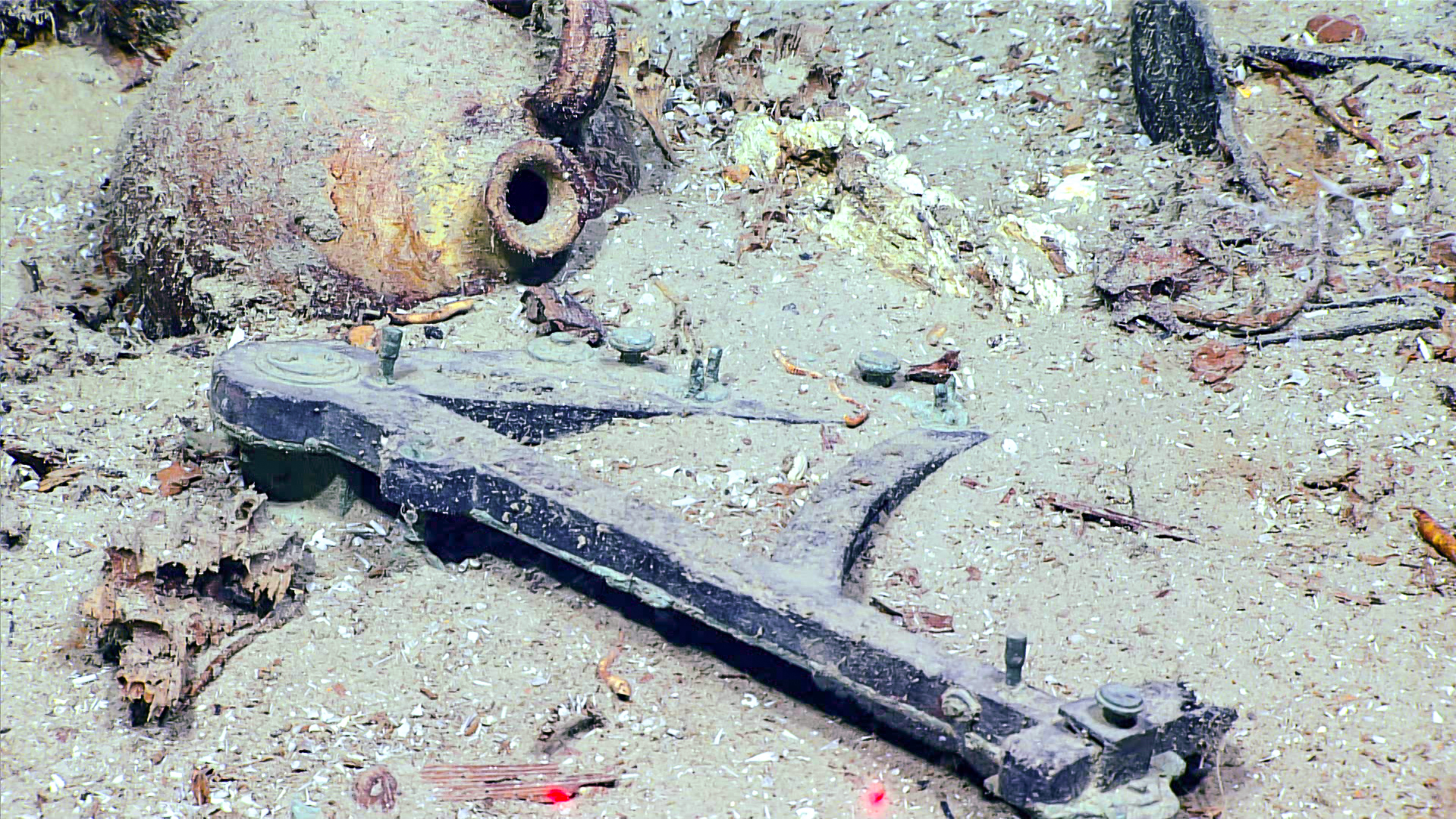

The area offshore the southeastern United States is known to be an area with many shipwrecks due to the World War II Battle of the Atlantic and ships lost at sea along the high traffic trade routes along the U.S. East Coast off of Cape Hatteras, North Carolina. Many of the vessels lost in this area have only roughly reported sinking locations, and their final resting locations remain unknown. Leg 2 of the Windows the the Deep 2019 expedition will include the collection of mapping data to search for potential archaeology sites as well as investigation via ROV exploration of any targets identified.

The area offshore the southeastern United States is known to be an area with many shipwrecks due to the World War II Battle of the Atlantic and ships lost at sea along the high traffic trade routes along the U.S. East Coast off of Cape Hatteras, North Carolina. Many of the vessels lost in this area have only roughly reported sinking locations, and their final resting locations remain unknown. Leg 2 of the Windows the the Deep 2019 expedition will include the collection of mapping data to search for potential archaeology sites as well as investigation via ROV exploration of any targets identified. Image courtesy of the NOAA Office of Ocean Exploration and Research. Download image (jpg, 2.1 MB).

This is the sixth NOAA Ship Okeanos Explorer expedition that will contribute to NOAA’s Atlantic Seafloor Partnership for Integrated Research and Exploration (ASPIRE), a major multi-year, multi-national collaborative field program focused on raising collective knowledge and understanding of the North Atlantic Ocean.

This expedition builds on the 2003 Windows to the Deep expedition, the Windows to the Deep 2018 expedition and the DEEP SEARCH (DEEP Sea Exploration to Advance Research on Coral/Canyon/Cold seep Habitats) expeditions, which have laid much of the groundwork for what we now know about environments along the edge of the southeastern U.S. continental margin. The last year of exploration in this region has led exciting discoveries – like rarely observed predation events, extensive deep-sea coral habitats, and significant range extensions for marine animals.

Every dive builds upon on our collective knowledge of this area, each mile of mapping data collected reveals something new about the seafloor. With the upcoming ROV dives and mapping, we hope to continue to enhance our understanding of this fascinating region.

Tentative plans for Leg 2 of the Windows to the Deep 2019 expedition, starting in Port Canaveral, Florida, and wrapping up in Norfolk, Virginia. Over the past decade, NOAA Ship Okeanos Explorer and the U.S. Extended Continental Shelf Project have mapped much of the deepwater habitats offshore the U.S. east coast (assembled bathymetry shown on this map), but much of the Blake Plateau remains unmapped and poorly explored. This expedition will contribute much-needed ROV survey and bathymetry data to build upon the existing foundation.

Tentative plans for Leg 2 of the Windows to the Deep 2019 expedition, starting in Port Canaveral, Florida, and wrapping up in Norfolk, Virginia. Over the past decade, NOAA Ship Okeanos Explorer and the U.S. Extended Continental Shelf Project have mapped much of the deepwater habitats offshore the U.S. east coast (assembled bathymetry shown on this map), but much of the Blake Plateau remains unmapped and poorly explored. This expedition will contribute much-needed ROV survey and bathymetry data to build upon the existing foundation. Image courtesy of the NOAA Office of Ocean Exploration and Research. Download image (jpg, 739 KB).



Expedition Goals

NOAA priorities for the Windows to the Deep 2019 expedition include a combination of science, education, outreach, and open data objectives that will provide a better understanding of this important marine region. Specific goals that we’ll be contributing towards during Leg 2 of this expedition include:

  • Acquire data on deepwater habitats in the southeast U.S. continental margin to support priority science and management needs
  • Identify, map, and explore the diversity and distribution of benthic habitats, including fish habitats, deep-sea coral and sponge communities, chemosynthetic communities, and biological communities that colonize or aggregate around shipwrecks
  • Explore U.S. maritime heritage by identifying and investigating sonar anomalies as well as characterizing shipwrecks
  • Investigate biogeographic patterns of deep-sea ecosystems and connectivity across the southeast U.S. continental margin for use in broader comparisons of deepwater habitats throughout the Atlantic Basin
  • Map, survey, and sample geologic features within the southeast U.S. continental margin to better understand the geological context of the region and improve knowledge of past and potential future geohazards
  • Collect high-resolution bathymetry in areas with no (or low-quality) sonar data
  • Acquire a foundation of ROV, sonar, and oceanographic data to better understand the characteristics of the water column and the fauna that live there
  • Engage a broad spectrum of the scientific community and public in telepresence-based exploration and provide a foundation of publicly accessible data and information products to spur further exploration, research, and management activities

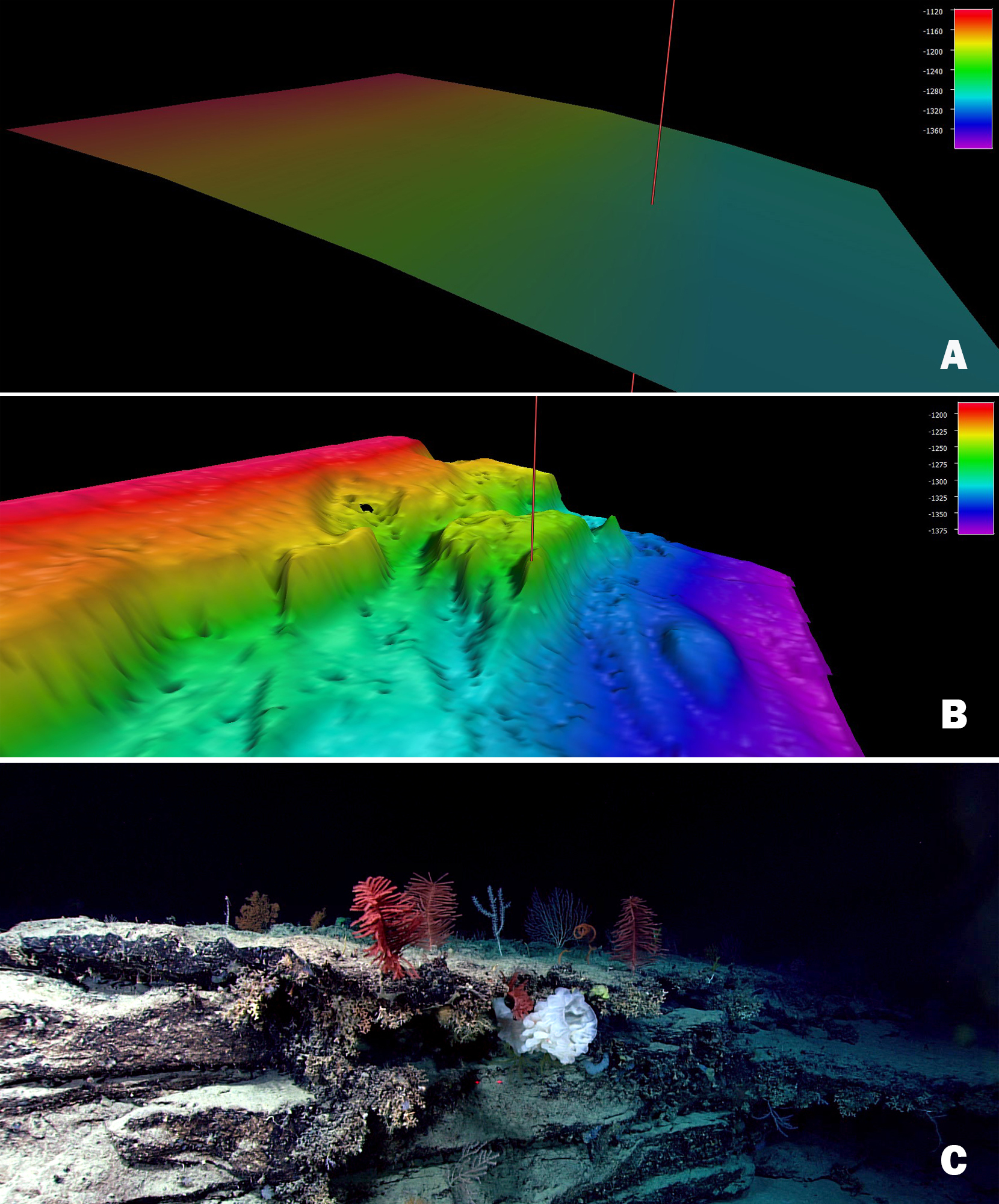

Prior to the Windows to the Deep 2018 expedition, this section of the Blake Escarpment appeared to be an area of low slope with no distinct features based on satellite altimetry. Image A shows satellite altimetry (Smith and Sandwell, 2014) at the Dive 04 site on “Blake Escarpment South.” During the expedition, multibeam mapping revealed a series of terraced features (Image B) and ROV exploration (at the site of the red mark) documented a highly diverse and dense community of deep-sea corals and sponges that were observed throughout the dive (Image C).

Prior to the Windows to the Deep 2018 expedition, this section of the Blake Escarpment appeared to be an area of low slope with no distinct features based on satellite altimetry. Image A shows satellite altimetry (Smith and Sandwell, 2014) at the Dive 04 site on “Blake Escarpment South.” During the expedition, multibeam mapping revealed a series of terraced features (Image B) and ROV exploration (at the site of the red mark) documented a highly diverse and dense community of deep-sea corals and sponges that were observed throughout the dive (Image C). Image courtesy of the NOAA Office of Ocean Exploration and Research. Download image (jpg, 1.6 MB).

Operations

During the second leg of the expedition, we will conduct 24-hour operations consisting of daytime ROV dives and overnight mapping. The 21 planned ROV dive sites are expected to include deep-sea coral and sponge habitats, submarine canyons, cold seeps and chemosynthetic communities, and areas of cultural heritage that may be of potential marine archaeological significance.

NOAA works with the scientific and resource management communities to characterize these areas through telepresence-based exploration. Operations use the ship’s deepwater mapping systems, NOAA’s dual-bodied 6,000-meter ROVs Deep Discoverer and Seirios, and a high-bandwidth satellite connection for real-time ship-to-shore communications. ROV dives will include high-resolution visual surveys and limited sampling. This expedition will help establish foundational information in the region to catalyze further exploration, research, and management activities.

Live video of dives can be viewed online in real time from June 21 through July 11, 2019.



Telepresence-enabled Exploration

Telepresence technology allows us to engage the majority of the science team from shore. NOAA uses telepresence technology to transmit data in real time to a shore-based team of scientists who actively participate in expeditions. Scientists participating from around the world contribute their expertise to operations in real time when discoveries are made at sea.

These shore-based scientists interact with the ship through a teleconference line and Internet collaboration tools. Using these communication tools, scientists and students help guide at-sea operations in real time, extending the reach of ocean exploration to more scientists and students than could possibly be accommodated onboard of any single vessel.

During the expedition, several scientists will also work together and stand watches at Exploration Command Centers (ECCs). When Okeanos Explorer expeditions first started, ECCs were the only way that scientists could engage with the ship in real time. As technology has advanced, scientists located anywhere with an Internet connection can participate in missions. However, many scientists still prefer to be co-located with their colleagues at an ECC, as it is the closest atmosphere to being in the collaborative environment that naturally forms on a ship. Also, working from an ECC removes scientists from their busy lives and allows them to focus on the expedition.

Education and Outreach

The same technology that allows scientists around the world to participate in the expedition from land also enables interested members of the public to experience deep-sea exploration, the wonder of discovery, and the fascination of science in real time! The live video feeds are available to anyone online, providing the public with a front row seat to discoveries as they are made.

Web content developed for this expedition includes background essays; mission logs; daily updates; videos and images; and a live video feed. Education materials allow educators and students to engage their classrooms using products tied to the expedition, including standards-based lesson plans, background information, ocean career connections, links to previous Office of Ocean Exploration and Research-sponsored expeditions, and more.
