NOAA Ship Okeanos Explorer Maximizing Operations:
Exploring the “sticks” in systematic exploration


Kelley Elliott
Expedition Coordinator
NOAA Office of Ocean Exploration and Research

Craig Russell
Okeanos Explorer Program Manager
NOAA Office of Ocean Exploration and Research

Podcasts LOGO NOAA Podcast:
Learn about the Okeanos Explorer's Continuous Plankton Tow through the Pacific Garbage Patch with a video podcast about the mission. (Quicktime, 2.1 Mb.)

See a Video Link Multibeam Echosounder Animation (Quicktime, 2.1 Mb.) and learn how scientist measure the depths of the seafloor.

Several years ago more than 50 scientists came together to discuss and recommend to NOAA how America’s “ship for exploration,” NOAA Ship Okeanos Explorer, should operate. Among the models suggested is one often referred to as a “sticks and boxes” approach. Priority exploration areas are put forth by the science community, representing priority “boxes” for exploration. The Okeanos Explorer travels to these priority “boxes” and systematically explores them using her core capabilities. Transits from one box to the next represent “sticks” in the model, and provide further exploration opportunities.

Exploring the “Boxes”
During 2009 field trials and the 2010 INDEX SATAL Expedition, Okeanos’ cruises focused on exploring “boxes.” Systematic exploration involves examining the area at different scales. The first step is to see what the area looks like by creating a map of the seafloor. Okeanos uses an EM302 multibeam sonar to create bathymetric maps of areas as deep as 7000 meters. Once the “box” is mapped, features of interest for further exploration can be identified.

The next step might be to sample the water column for evidence of chemical processes such as venting. Finally, the exploration team onboard and ashore will decide whether to deploy the Remotely Operated Vehicle (ROV). The ROV will spend enough time examining a feature so that scientists can generate interesting questions and develop a “sense of place", but will not linger long enough for those questions to be answered. After exploring a feature, the ship will move on to examine another feature in the “box” until the area is similarly explored, or time has run out for the ship to explore that particular area.

Exploring the “Sticks”
During INDEX SATAL 2010, we explored “boxes.” This cruise, however, offers the opportunity to take steps towards exploring one of many “sticks.” Transits between each “box” are truly exploration cruises and offer further exploration opportunities, such as the chance to examine oceanographic conditions over great distances or detect new seafloor features. 95% of the ocean remains unexplored. With so much remaining to be mapped and discovered, Okeanos Explorer conducts operational exploration transits, leveraging the opportunity to acquire data and information.

Always exploring, Okeanos Explorer conducts operational exploration transits, leveraging the opportunity to acquire data and information.

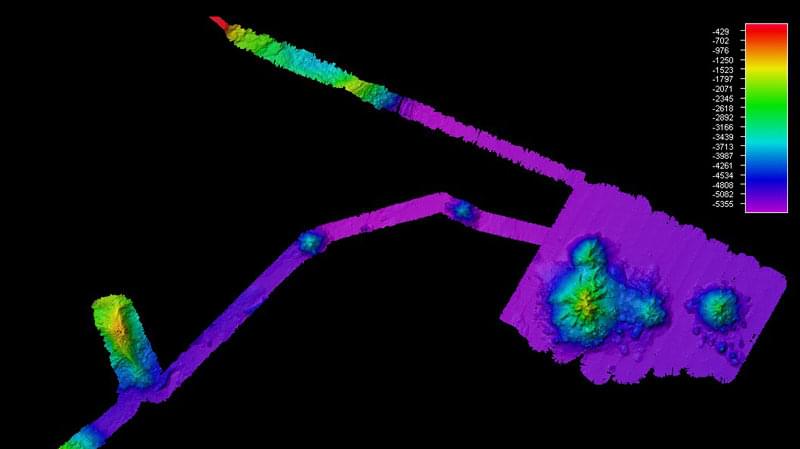

Always exploring, Okeanos Explorer conducts operational exploration transits, leveraging the opportunity to acquire data and information. Multibeam data is acquired on nearly all of Okeanos Explorer’s cruises. This image shows multibeam bathymetry collected offshore Hawaii’s big island during the 2009 field season, and represents a “stick” in Okeanos’ exploration model. Image created using Fledermaus version 7 using cruise EX0909 data. Click image for larger view and image credit.


Multibeam data acquired with Okeanos Explorer's EM302 multibeam system during cruise EX0909 offshore Hawaii's big island Wini Seamount.

Multibeam data acquired with Okeanos Explorer’s EM302 multibeam system is overlaid on top of satellite-altimetry data. As you can see in this image, bathymetric data created with the ship’s EM302 multibeam is much more detailed, allowing us to define previously unknown or poorly known features, gaining a more accurate and precise picture of the character and nature of the seafloor. Image created in Fledermaus version 7 using data acquired during cruise EX0909 offshore Hawaii’s big island (Wini Seamount). Click image for larger view and image credit.


Multibeam data is acquired during nearly all of Okeanos Explorer’s cruises. Bathymetric data derived from satellite altimetry exists for the world’s ocean, however the scale is so large that only relatively large features are recognized. Bathymetric data created with the ship’s EM302 multibeam system is much more detailed, allowing us to image previously unknown features and gain a truer picture of what the seafloor actually looks like. In the last two years, the Okeanos Explorer team mapped at least three seamounts not shown in existing bathymetry or charts. The EM302 system also has the ability to image some features in the water column, like the active vents observed off the Mendocino Ridge.

The Continuous Plankton Recorder is returned to the deck of the Okeanos Explorer after collecting plankton for over 300 miles.

The Continuous Plankton Recorder is returned to the deck of the Okeanos Explorer after collecting plankton for over 300 miles.Click image for larger view and image credit.

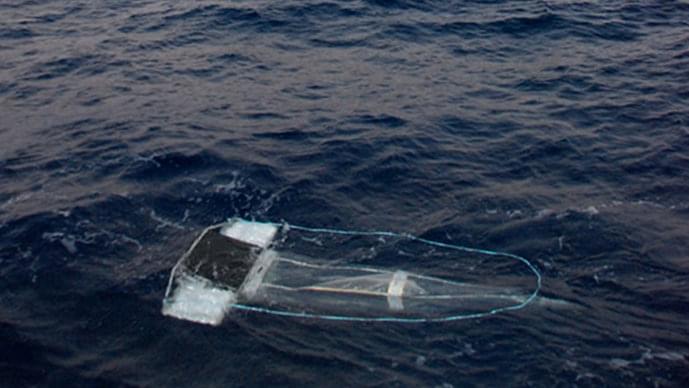

Scientists will use a device called a 'Manta Net' to sample seawater and gain a greater understanding of the characteristics and extent of the 'Pacific Garbage Patch.'

A device called a “Manta Net” will be used during the exploration cruise to sample seawater at the air-sea interface for plastics. The samples collected will allow scientists to gain a greater understanding of the characteristics and extent of the “Pacific Garbage Patch.” Click image for larger view and image credit.


The transits also offer the chance to do other exploration that fit within the “stick” model. During this cruise, two “surveys of opportunity” are being conducted: sampling plankton across the Pacific, and sampling for plastics to gain a greater understanding of the east-west extend of the “Garbage Patch.

Sampling of plankton across the Pacific Ocean started with Okeanos’ previous cruise from Guam to Hawaii, when an instrument called a Continuous Plankton Recorder (CPR) was added to the operational mix. The CPR was towed behind the ship and about 10 meters below the water during the transit, continuously transferring plankton from seawater onto rolling silk screens that can be analyzed in the laboratory. After each cruise, these samples are analyzed to provide basic information on phytoplankton and the species composition of zooplankton – the base of the marine food web. This same instrument will be towed and collect samples from Hawaii to California. Together, the data will provide a picture of plankton diversity across more than 5,100 miles of the Pacific Ocean.

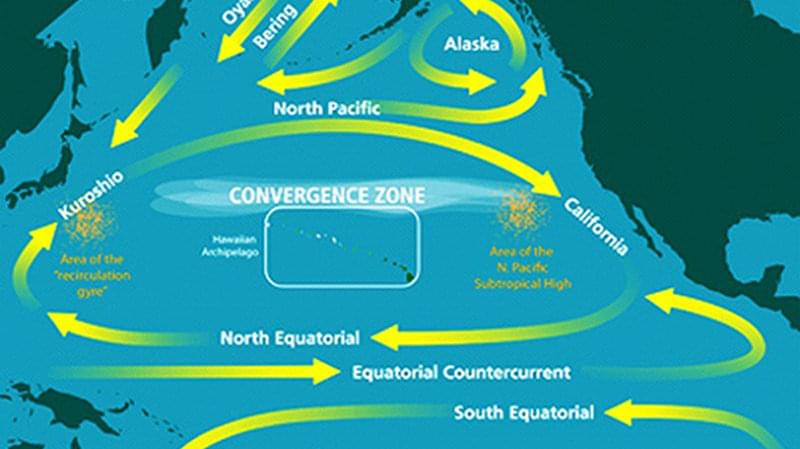

Sampling for plastics to gain a greater understanding of the characteristics and extent of the “Garbage Patch” External Link will also be conducted during the Hawaii to California cruise. During the cruise, an instrument called a “Manta Net” will be periodically towed at the ocean-air interface behind the ship where it will filter seawater and funnel bits of plastic and surface zooplankton into a sampling container on the device. While large pieces of debris do exist in the Garbage Patch, much of the small pieces of plastics it is composed of are not detectable by satellites or airplanes. Thus scientists who wish to conduct scientific sampling of the Garbage Patch must do so aboard ships travelling to this remote region. The data collected during this cruise will help to answer some of the basic questions about the Garbage Patch (i.e. How large is it? How is it distributed? How does it affect marine life?), so the situation can be better assessed, and questions such as “What can be done?” better addressed by follow-on research cruises on other research vessels.

Looking to the Future
Systematic exploration aboard NOAA Ship Okeanos Explorer is an evolving operational model. The variety of data being collected onboard Okeanos Explorer during this cruise from Hawaii to California represents a step forward in the exploration that can be conducted with the at-sea time allotted to the ship. Looking to the future we plan to add additional time to the “sticks” in our operational model so that newly detected features may be explored and more of the ocean may be characterized.
