Siau is an active volcano rising 1827 meters above the ocean, and dropping steeply into the sea. The Sangihe islands are composed of several small islands distributed in a north-south direction. Siau Island is one of them, located 40nm to the south of the main Sangihe Island.

Siau is an active volcano rising 1827 meters above the ocean, and dropping steeply into the sea. The Sangihe islands are composed of several small islands distributed in a north-south direction. Siau Island is one of them, located 40nm to the south of the main Sangihe Island. Click image for larger view and image credit.

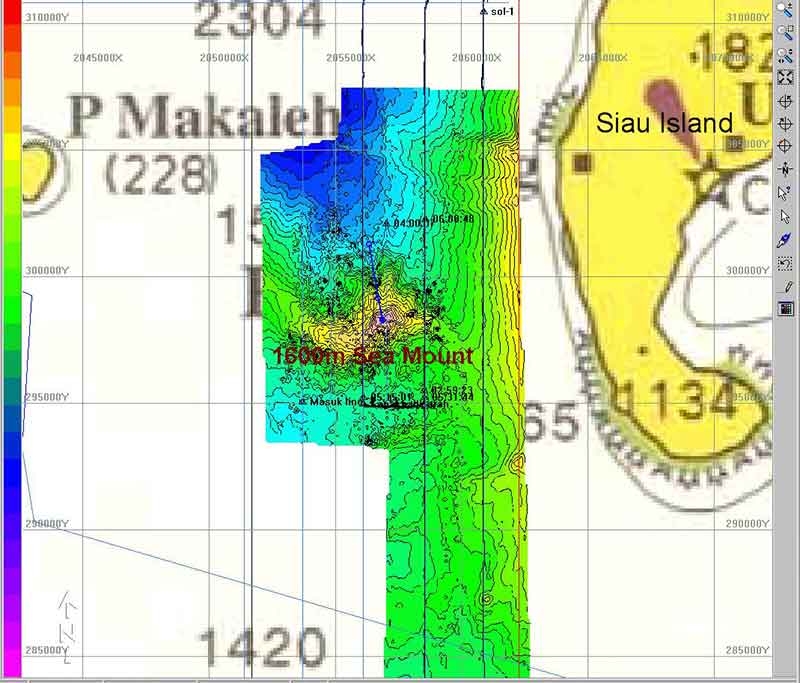

A new finding of 1600m high sea mount just 80km to the west of Siau Island.

A new finding of 1600m high sea mount just 80km to the west of Siau Island. Click image for larger view and image credit.


A Sea Mount near Siau Island


Wahyu W.Pandoe
Chief Scientist, Indonesian Research Vessel Baruna Jaya IV
BPPT Technology Center for Marine Survey – Indonesia

Since last year’s World Ocean Conference (WOC), North Sulawesi (a Province of Indonesia) is becoming more popular due to its natural beauty. The hilly landscape and mountainous area reflect a variety of land use. Offshore to the north of Sulawesi, several islands of varying sizes spread irregularly. The main islands in the region are the Sangihe and Talaud Islands, though they are not widely known by the Indonesian people. The Sulawesi Sea and Pacific Ocean limit these islands to the west and east, respectively. The Philippine mainland is located less than 200 nautical miles to the north. The regional seafloor varies greatly, hosting steep bathymetric areas and depths as deep as 5000 meters.

The Sangihe islands are composed of several small islands distributed in a north-south direction. Siau Island is one of them, located 40nm to the south of the main Sangihe Island. People are living there peacefully. Siau is an active volcano rising 1827 meters above the ocean, and dropping steeply into the sea.

The Indonesian R/V Baruna Jaya IV recently conducted an integrated hydrography, oceanography, geology and fisheries survey off the west side of this island. Baruna Jaya IV uses a Seabeam 1050 multibeam system to image the seafloor; 126 beams of sound sweep simultaneously across the seafloor from port to starboard sides, measuring the distance to the seafloor. The coverage of the sweep is effectively between 2500 and 3000 meters at a time. Continuous measurement while the vessel is moving forward allows a 3D picture of the bathymetry.

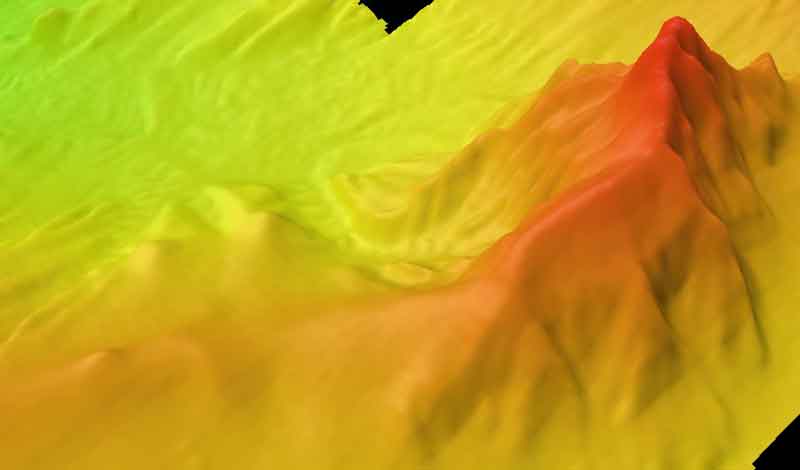

Bathymetric image of the new seamount revealed during hydrographic survey by the Indonesian Research Vessel Baruna Jaya IV.

Bathymetric image of the new seamount revealed during hydrographic survey by the Indonesian Research Vessel Baruna Jaya IV. Click image for larger view and image credit.


Bathymetric image of the new seamount discovered by Baruna Jaya IV, represented with multibeam data collected by NOAA Ship Okeanos Explorer. Okeanos plans to conduct two dives using the Little Hercules ROV on this seamount to further explore what is there.

Bathymetric image of the new seamount discovered by Baruna Jaya IV, represented with multibeam data collected by NOAA Ship Okeanos Explorer. Okeanos plans to conduct two dives using the Little Hercules ROV on this seamount to further explore what is there. Click image for larger view and image credit.


Baruna Jaya IV’s recent multibeam survey to the west of Siau revealed a previously unknown seamount rising from seafloor depths of 2300m to 710m, or nearly 1600m high. This seamount is located about 8km to the west of Siau Island. Baruna Jaya IV is further investigating the site by collecting CTD measurements, and trawling/dredging to learn more. The very steep southern wall of the seamount may cause concern for the people living on the west coast of Siau Island. This area is well known for having frequent earthquakes; A medium magnitude earthquake could potentially cause a submarine landslide that could generate a tsunami wave. While recent mapping efforts have revealed this seamount, others likely remain unseen. The NOAA Ship Okeanos Explorer has been mapping deeper areas of the Sangihe Talaud region, revealing new underwater features, and will investigate this new seamount with the Little Hercules ROV tomorrow.

This collaborative Indonesia-USA Deep-Sea Exploration of the Sangihe-Talaud area will provide a more complete picture of the seafloor bathymetry and undersea activity in the Sangihe-Talaud region. The Sangihe-Talaud region is very volcanically active, both above and below the ocean surface. Recent findings of submarine volcanoes have led local people living in the region to wonder about their safety. The data collected during the INDEX SATAL 2010 Expedition provides a better understanding of the seafloor bathymetry and location of undersea volcanoes. Experts will examine this information, and carefully explain the advantages and disadvantages of living in an area surrounded by volcanoes to the local people. We hope the information collected during this expedition will help the local people to live in a safe and peaceful environment!
