Cuba’s Twilight Zone Reefs and Their Regional Connectivity

Cuba’s North East Coastline: Diversity on a Grand Scale

By Joshua Voss, Assistant Research Professor - Harbor Branch Oceanographic Institute at Florida Atlantic University
Juliett González Méndez, Specialist in Marine Protected Areas - National Center of Protected Areas (CNAP-CITMA)

June 11, 2017

[ Disponible en español ]

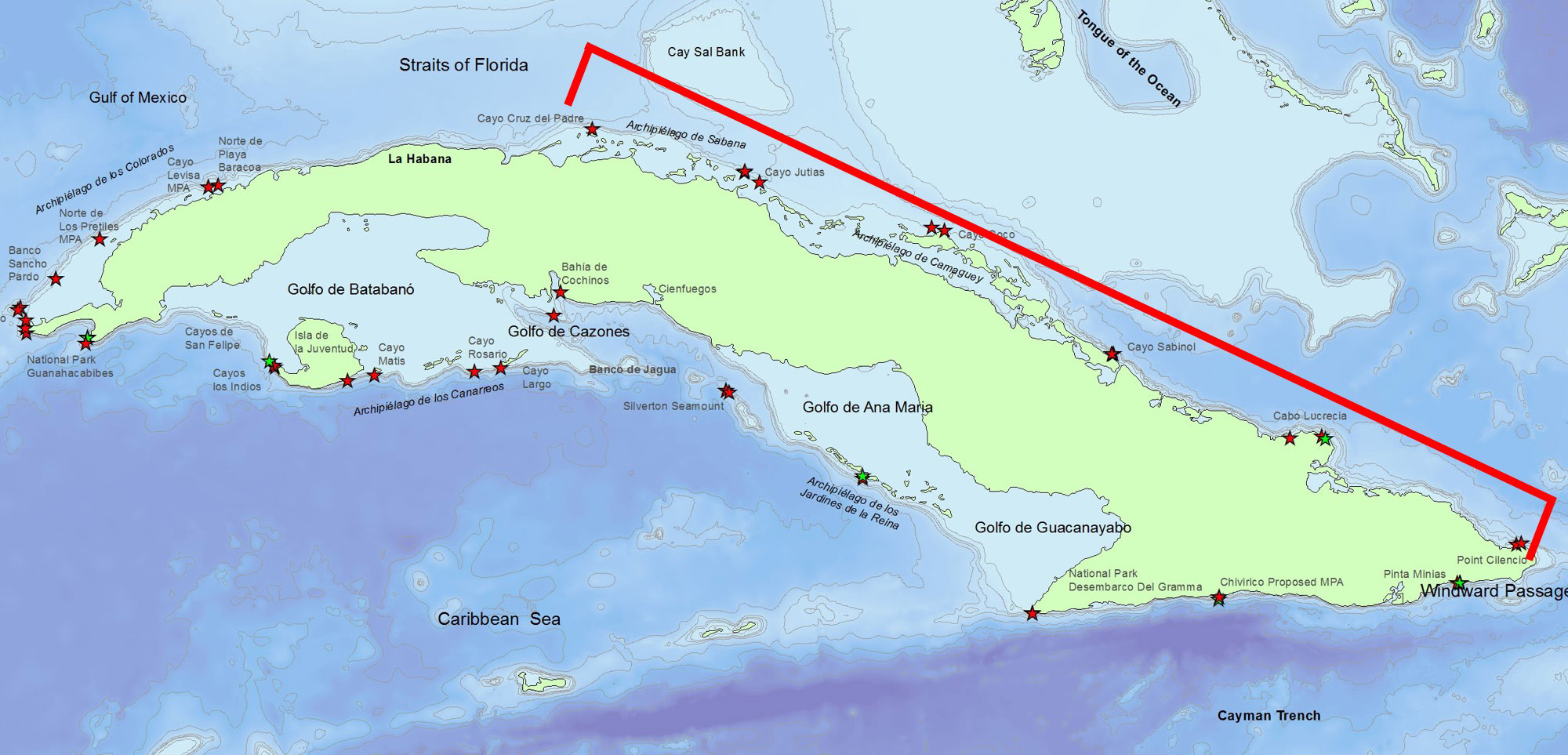

We completed 11 ROV dives at 6 locations along the north east coast of Cuba.  Approximately half of these sites were located near or bordering Cuba’s vast network of marine protected areas.

We completed 11 ROV dives at six locations along the north east coast of Cuba. Approximately half of these sites were located near or bordering Cuba’s vast network of marine protected areas. Image courtesy of Cuba’s Twilight Zone Reefs and Their Regional Connectivity. Download larger version (jpg, 410 KB).

The final week of our expedition has focused on mesophotic sites along the Northern coast of Cuba, from Punta Maisí on the eastern tip of Cuba to Havana. We expected conditions here to be some of the most challenging of the expedition given the proximity to more than 3,000-meter deep water and strong currents between Cuba and Haiti in the Windward Passage, as well as north of Cuba in the Bahama Chanel. However, we have been very pleasantly surprised with relatively calm conditions and currents of less than 0.5 knots during the majority of our operations. As a result, we have been able to conduct effective remotely operated vehicle (ROV) operations every day of this leg. Additionally, we have been able to snorkel and collect shallow 43 Montastraea cavernosa samples for our population connectivity studies at three sites along the northern coast.

Shallow water coral sampling via snorkeling was conducted at three sites along the northern coast. With patience, determination, and a bit of helpful coaching, ROV pilot Jason White mastered the art of collecting coral biopsies.

Shallow water coral sampling via snorkeling was conducted at three sites along the northern coast. With patience, determination, and a bit of helpful coaching, ROV pilot Jason White mastered the art of collecting coral biopsies. Image courtesy of Cuba’s Twilight Zone Reefs and Their Regional Connectivity. Download larger version (jpg, 934 KB).

The sites on the north eastern coast of Cuba have displayed dramatic variability compared to those on the western side of the country. Sites near Punta Maisí and Punta Silencio were located in unprotected areas, which we expected to be vertical walls near steep canyons. However, instead these sites were characterized by 45° slopes from approximately 150 meters up to 75 meters. Diverse sponge and black coral communities were dominant below 75 meters. Some sites such as Cabo Lucrecia, also had 45-60° sloping rock walls, but were capped by extensive fields of Agaricia lettuce corals and thousands of shallow water gorgonians above 50 meters. Only one other location during our expedition, the Bahía de Cochinos (Bay of Pigs) marine protected area (MPA), demonstrated higher Agaricia abundance. Therefore, based on the extensive coral communities present at Cabo Lucrecia, this site represents an excellent opportunity for creation of a new MPA on Cuba’s northern coast.

Steeply sloped or even completely vertical walls were common from 75m-125m at roughly half the sites along the north eastern reefs of Cuba. Here thousands of black whip corals (Stichopathes sp.) and whip gorgonians (Elisella sp.) extend into the current, feeding on the plankton pushed along these walls by deep currents

Steeply sloped or even completely vertical walls were common from 75 meters-125 meters at roughly half the sites along the north eastern reefs of Cuba. Here thousands of black whip corals (Stichopathes sp.) and whip gorgonians (Elisella sp.) extend into the current, feeding on the plankton pushed along these walls by deep currents. Image courtesy of Cuba’s Twilight Zone Reefs and Their Regional Connectivity. Download larger version (jpg, 790 KB).

The base of most sites below 150 meters was composed of sloping sediment plains with occasional rocky outcrops, but even in these deep barren areas, lionfish were observed. Lionfish distributions appeared to be generally clumped, with multiple individuals often sighted within five meters of one another. As voracious predators of many small fishes, including juvenile groupers and snappers, the impacts of this biological invasion on fisheries resources should be investigated, as the effects may vary significantly by site.

Grouper and snapper species abundance were also highly variable, and some sites with jagged, rugose structure and dense benthic biota were relatively devoid of larger reef dwelling species. However, other sites boasted amazing fish abundance. For example, multiple grouper species were abundant and a large aggregation of dog snapper (Lutjanus jocu) was observed just off Cayo Coco. Expansion of the existing MPA at Centro Oeste (Central West) Cayo Coco to encompass these areas may be an effective management strategy for conserving these important fisheries resources.

Another outstanding mesophotic reef we surveyed near Cayo Jutía lies just beyond the current boundaries of a faunal refugia MPA, Lanzanillo-Pajonal-Fragoso. A vertical rock wall from 140 meters to 40 meters with many heavily eroded faces provides extensive fish habitat. While Madracis corals were abundant near the base of the wall, numerous Agaricia lettuce corals covered the top of the wall near 40 meters.

In the shallow water MPA zone above our ROV dive site, beautiful extensive fields of Acropora cervicornis (staghorn coral) and stands of Acropora palmata (elkhorn coral) surrounded a small exposed islet on the reef crest. Evidence of fishing along the deep boundary near the existing MPA included snagged fishing/anchor lines, a large ~10-meter fishing net that was observed fouled on the wall at approximately 70 meters, and the presence of small fish vessels during our operations. Lanzanillo-Pajonal-Fragoso MPA represents another location where expansion of the existing boundaries should be strongly considered.

A massive school of dog snapper (Lutjanus jocu) near Centro Oeste (Central West) Cayo Coco MPA

A massive school of dog snapper (Lutjanus jocu) near Centro Oeste (Central West) Cayo Coco MPA. Image courtesy of Cuba’s Twilight Zone Reefs and Their Regional Connectivity. Download larger version (jpg, 169 KB).

ROV dive sites in the upper mesophotic zone ranged from eroded rock walls to well-developed fore reef areas with significant hard coral cover.  The hard coral communities were dominated by lettuce corals (Agaricia spp.) and generally restricted to the 40m-70m depth zones across the northern sites

ROV dive sites in the upper mesophotic zone ranged from eroded rock walls to well-developed fore reef areas with significant hard coral cover. The hard coral communities were dominated by lettuce corals (Agaricia spp.) and generally restricted to the 40 meter-70 meter depth zones across the northern sites. Image courtesy of Cuba’s Twilight Zone Reefs and Their Regional Connectivity. Download larger version (jpg, 294 KB).

Even on the barren sediments plains near the base of mesophotic slopes and walls, solitary lionfish were observed in multiple locations

Even on the barren sediments plains near the base of mesophotic slopes and walls, solitary lionfish were observed in multiple locations. Image courtesy of Cuba’s Twilight Zone Reefs and Their Regional Connectivity. Download larger version (jpg, 78 KB).

Hard corals in the deep mesophotic zone from 75m-125m were less common.  Madracis and Stylaster colonies, though rare, were generally found in an orientation perpendicular to the current to maximize feeding

Hard corals in the deep mesophotic zone from 75 meters-125 meters were less common. Madracis and Stylaster colonies, though rare, were generally found in an orientation perpendicular to the current to maximize feeding. Image courtesy of Cuba’s Twilight Zone Reefs and Their Regional Connectivity. Download larger version (jpg, 253 KB).
