Submarine Ring of Fire 2012: Northeast Lau Basin

Our Work Has Just Begun

By Brad Tebo, Professor - Oregon Health & Science University
and Rick Davis, Graduate Student - Oregon Health & Science University
September 12, 2012
0648 GMT
Wind – ESE @ 13 kts
Air Temperature – 24.6°C (76.3°F)
Sea State – 2.4m

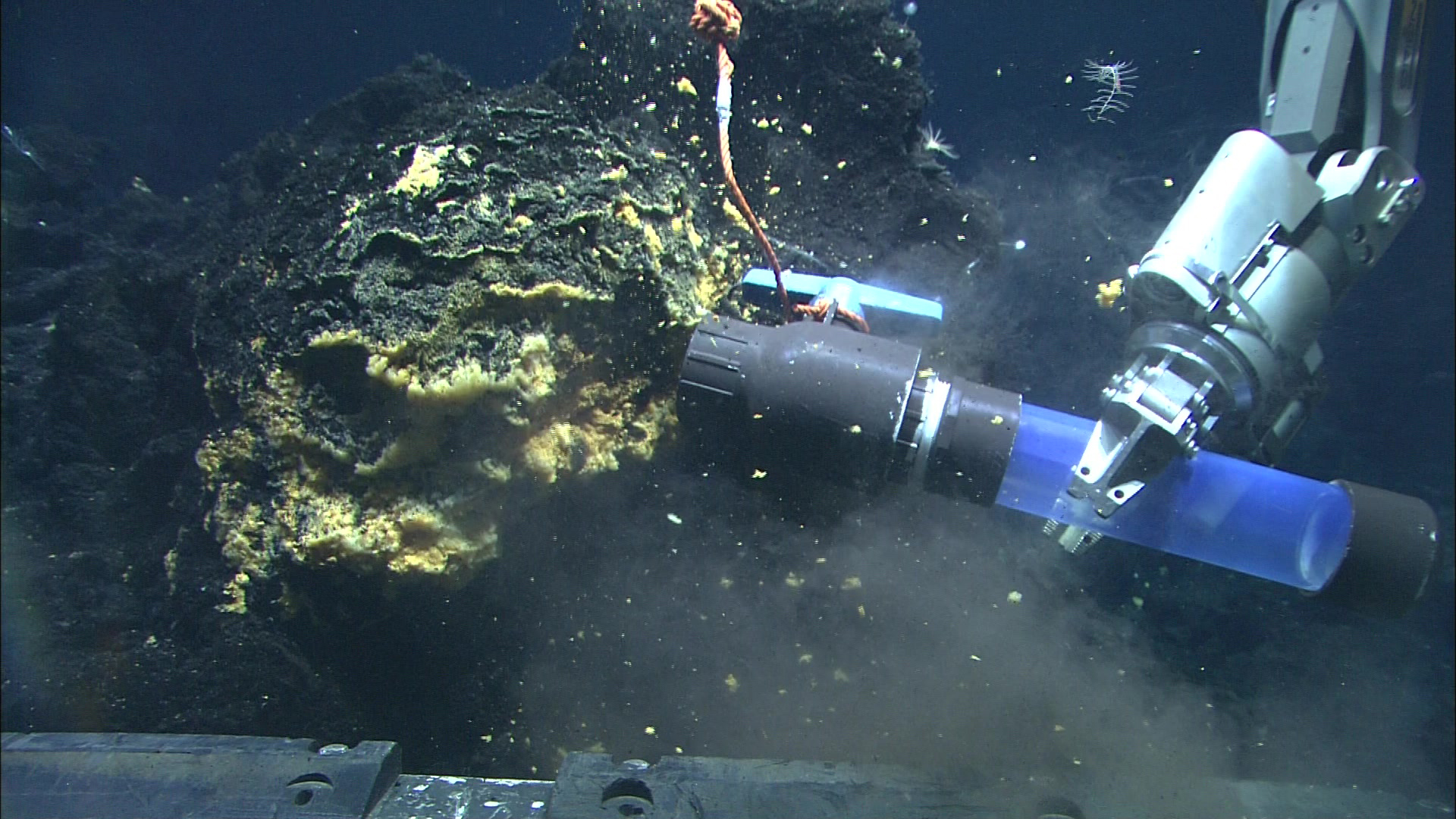

The manipulator arm of the Quest 4000 ROV uses a scoop to sample the microbial mats at Vai Lili.

The manipulator arm of the Quest 4000 ROV uses a scoop to sample the microbial mats at Vai Lili. Image courtesy of MARUM, University of Bremen and NOAA-Pacific Marine Environmental Laboratory. Download larger version (jpg, 1.1 MB).

Our Quest 4000 dive (Q322) to find iron- and manganese-oxidizing microbial mats proved to be a great success. From previous cruises and surveys we had a pretty good navigational fix on where to find these mats, and within about an hour of the ROV reaching the bottom we had discovered what we were looking for. We sampled four different sites, all within about 30 meters of each other with each having somewhat distinct iron (Fe) and manganese (Mn) oxide deposits. All of the mats are characterized by a very loose flocculent Fe oxide layer that underlies the more cohesive or crusty manganese oxide surface. The first site’s temperature was 35°C and had a relatively thin Fe and Mn mat that was not heavily mineralized. Other mats had more mineralized and Mn oxide rich surface layers, almost crust-like, with measured temperatures from about 10°C reaching as high as 43°C at the surface of the mat/crust, compared to the seawater temperature of 2-3°C.

Close up view of orange iron-oxide microbial mat overlying black manganese-oxide encrusted mat.

Close up view of orange iron-oxide microbial mat overlying black manganese-oxide encrusted mat. Image courtesy of MARUM, University of Bremen and NOAA-Pacific Marine Environmental Laboratory. Download larger version (jpg, 1.2 MB).

We sampled the mat using two types of scoop samplers, designed to collect the samples while minimizing their disruption after collection. The “Texas scoops“ have a wide bore and can hold about two liters of sediment and water samples and are used for DNA (genomic) analysis and other preserved samples. The “double scoops“ are similar but are smaller and have two chambers that allow the sample to be collected and then mixed with preservative in situ (at depth). These scoop samples are used for RNA analysis which will be used to see what genes the bacteria are using as they are living at the vent. During this dive we collected Texas scoops at four 4 sampling locations and double scoops at two. Upon recovery of the ROV on board ship, the samples were quickly transferred to the shipboard cold (4°C) room until they could be subsampled and properly processed (frozen, preserved with fixatives, and used for microbial cultivation and other experimental work).

Bacterial mat lies on top of rock structure at Vai Lili.

Bacterial mat lies on top of rock structure at Vai Lili. Image courtesy of MARUM, University of Bremen and NOAA-Pacific Marine Environmental Laboratory. Download image (jpg, 96 KB).

Overall, our dive was a resounding success as we were able to collect more than enough samples for all the research we will do with them back in the lab. Our work has just begun.
